GF54.21-P-0001-04G

Multi-function control module (CCM), networking the components

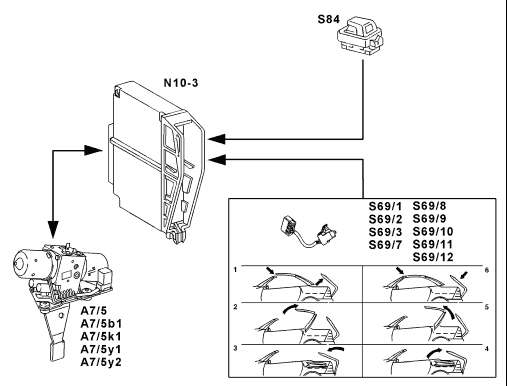

A7/5 Soft top mechanism hydraulic unit A7/5b1 Overload protection thermocouple A7/5k1 Relay A7/5y1 Vario-roof solenoid valve A75y2 Trunk lid cylinder N10-3 Multi-function control module S69/1 Vario-roof "closed" limit switch (right lug) S69/2 Vario-roof "locked" limit switch (right rotary tumbler) S69/3 Vario-roof "locked" limit switch (left rotary tumbler) S69/7 Left trunk lid "closed/locked" limit switch S69/8 Right trunk lid "closed/locked" limit switch S69/9 Trunk lid "open" limit switch S69/10 Trunk partition "closed" limit switch S69/11 Vario-roof "open/lowered" limit switch S69/12 Trunk lid rotary tumbler/trunk lamp toggle switch S84 Vario-roof switch
		P54.21-0227-06

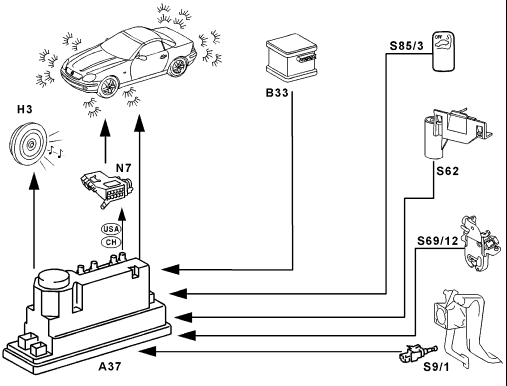

A37 PSE control module (combined) B33 ATA inclination sensor H3 Alarm horn N7 Exterior lamp failure monitoring module S9/1 Stop lamp switch (4-pin) S62 Engine hood switch (ATA) S69/11 Vario-roof "open/lowered" limit switch S85/3 ATA status/towing protection switch
		P54.21-0224-06

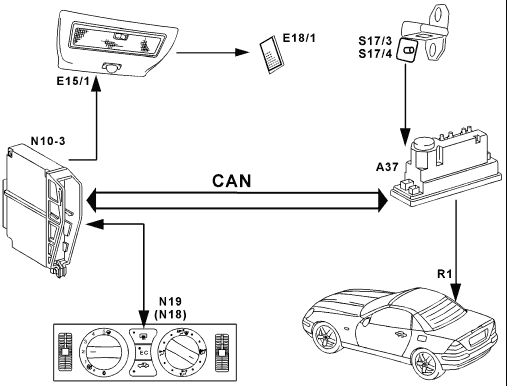

A37 PSE control module (combined) E15/1 Front dome lamp (with switch) E18/1 Trunk lamp N10-3 Multi-function control module N18 Heater pushbutton control module N19 AAC push button control module R1 Rear window defroster S17/3 Left front door contact switch S17/4 Right front door contact switch
		P54.21-0223-06

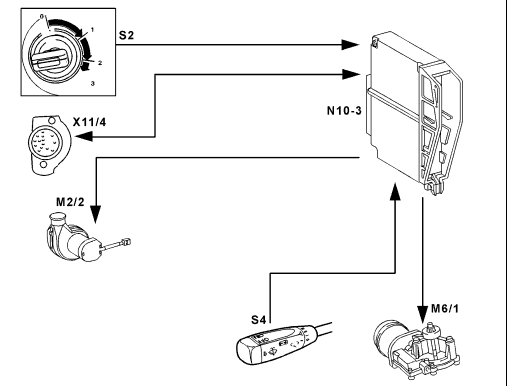

M2/2 Module box blower motor M6/1 Wiper motor N10-3 Multi-function control module S2 Starter switch S4 Combination switch X11/4 Data link connector
		P54.21-0222-06
